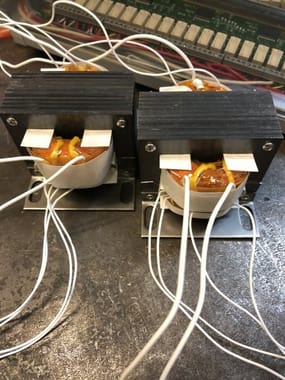

Ferroresonant Transformers
Ferroresonant transformers, also known as constant voltage transformers (CVTs) or ferros, provide a range of benefits, including current-limiting sensitive load protection, and are designed with a low-pass filter to suppress transient and surge voltages. CVTs can also “ride through” brief power outages of one-half cycle without losing output voltage.
How Do Ferroresonant Transformers Operate?
Ferroresonant transformers operate on a unique principle that combines the functions of a transformer and a resonant circuit. In a ferroresonant transformer, the magnetic core is deliberately driven into saturation, creating a resonant circuit with the transformer’s windings and a connected capacitor. This configuration stabilizes the output voltage, effectively filtering out input voltage variations and delivering a constant, high-quality power supply. Key CVT functionalities include:
Core Saturation & Resonance
Unlike conventional transformers, ferroresonant transformers intentionally drive the core into saturation, where the magnetic flux reaches its maximum. When paired with a capacitor, this creates a resonant circuit that “locks” the output voltage at a predetermined level.
Voltage Regulation
This self-regulating property means that even if the input voltage fluctuates due to load variations or line disturbances, the output remains steady. The result is a transformer that inherently stabilizes the power supplied to downstream equipment.
Isolation & Noise Reduction
Ferroresonant transformers provide electrical isolation between the input and output, reducing noise and transient spikes that can affect sensitive electronics.
Custom Ferroresonant Transformers Provide Enhanced Power Regulation & Reliability
Ferroresonant transformers are specialized devices designed to provide steady, regulated power output even when the input voltage fluctuates. Renowned for their robustness and reliability, CVT transformers play a vital role in applications where power stability is critical for protecting sensitive equipment and ensuring consistent performance.
Ferroresonant Transformer Advantages
Ferroresonant transformers are designed and manufactured to provide unmatched resilience and versatility. Some of the main benefits of utilizing a CVT include:
- Superior Voltage Regulation - Maintains a stable output voltage even when input voltage fluctuates, making it ideal for sensitive equipment.
- Built-in Surge Protection & Noise Filtering – Naturally suppresses voltage spikes, electrical noise, and transients without needing extra components.
- Ride-Through Capability - Can sustain power for a brief period (up to half a cycle) during momentary outages, preventing disruptions.
- Current Limiting for Overload Protection – Automatically restricts excessive current, reducing the risk of damage in overload conditions and provides short circuit protection.
- Quasi-Square Wave Output - Reduces filtering requirements for DC applications, simplifying circuit design.
- Reliability in Harsh Conditions - Durable and resistant to voltage instability, making it ideal for industrial and mission-critical applications.
Check Out Our Ferroresonant Transformers
Ferroresonant Transformer Applications
CVTs are commonly utilized within the following industries and applications:
Industries
- Industrial Automation & Manufacturing - Used in motor control systems, CNC machines, and industrial power supplies to ensure smooth operation.
- Medical Equipment & Healthcare - Provides stable power for MRI machines, diagnostic equipment, and laboratory instruments where voltage fluctuations can cause malfunctions.
- Telecommunications & Data Centers - Protects network servers, communication hubs, and IT infrastructure from power surges and voltage sags.
- Semiconductor Manufacturing - Ensures precise voltage regulation in semiconductor processing equipment, reducing errors in chip fabrication.
- Audio & Broadcast Systems - Reduces electrical noise and stabilizes power for high-end audio, video, and broadcasting equipment.
- Defense & Aerospace - Used in mission-critical military and aviation applications where power reliability is crucial.
- Power Distribution & Utility Systems - Acts as a line conditioner to protect against voltage instability in energy grids.
- Traffic Control Systems- Traffic signals, arrow boards, and additional outdoor and mobile traffic control equipment often require power transformers to improve worker safety and keep the machinery running effectively.
- Oil & Gas – CVTs are critical to the oil and gas industry, helping maintain reliable electricity and power for efficient operations.
Applications
- Uninterruptible Power Supply (UPS) Systems - Provides temporary power hold-up and voltage stabilization.
- Battery Chargers & Power Supplies - Ensures consistent power delivery in industrial and commercial charging systems.
- Inverters & Frequency Converters - Helps regulate voltage in AC-DC power conversion applications.
- Line Conditioners - Protects computers, sensitive lab instruments, and industrial control panels from power fluctuations.
- Lighting Systems - Used in commercial and industrial lighting to regulate voltage and prevent flickering.
CVT Potential Limitations
To ensure project success, you must choose the proper transformer for your specific needs. Potential limitations to consider before purchasing a CVT include:
- Lower efficiency compared to standard transformers
- Larger size and heavier weight
- Limited frequency range (typically designed for 50/60 Hz. operations)
- Cost considerations can be more expensive than standard linear transformers due to their specialized design and materials.
- However, the added benefits of voltage regulation and power conditioning may justify the cost in applications where power stability is critical.
Despite these limitations, ferroresonant transformers remain a preferred choice in mission-critical applications that require voltage stability, surge protection, and reliability. Proper system design and component selection can help mitigate most of these drawbacks.
Ferroresonant Transformer FAQs
Are Ferroresonant Transformers Obsolete?
No, they are still widely used in applications that require voltage regulation, power conditioning, and surge protection.
While newer power electronics (like switching regulators and UPS systems) provide alternative solutions, CVTs remain a reliable choice in industries like telecommunications, industrial automation, and medical equipment where stable power is critical.
Ferroresonant transformers’ ability to ride through short power interruptions suppress transients, and self-regulate voltage keeps them relevant in modern applications.
What is the Effect of Ferroresonance on Transformers?
Ferroresonance is a nonlinear electrical phenomenon that occurs when a transformer’s core becomes saturated, leading to overvoltage, distorted waveforms, and excessive currents. It can cause:
- Voltage spikes that can damage electrical equipment.
- Increased heating leads to transformer inefficiency or failure.
- Unstable power conditions, particularly in lightly loaded or unbalanced systems.
Ferroresonant transformers are designed to take advantage of controlled ferroresonance, using it to stabilize voltage and protect sensitive loads, unlike conventional transformers where unintended ferroresonance can be problematic.
What is the Purpose of a Ferromagnetic Core in Transformers?
The ferromagnetic core is used to concentrate and efficiently transfer magnetic flux, improving the transformer’s ability to convert and regulate electrical energy. Key benefits include:
- Enhanced Magnetic Coupling – Allows for efficient energy transfer between the primary and secondary windings.
- Voltage Regulation – In ferroresonant transformers, the core operates in saturation to help stabilize the output voltage.
- Reduced Energy Losses – The core minimizes leakage flux, improving overall transformer performance.
In ferroresonant transformers, the ferromagnetic core works with a capacitor to create a resonant circuit, enabling superior voltage stabilization and power conditioning.
Why Choose General Transformer for Your CVT Needs?
General Transformer designs ferroresonant transformers to meet your critical application needs. As an ISO 9001 certified manufacturer, we only work with domestic suppliers through a reliable supply chain. We maintain complete control over processes and procedures, engineering and manufacturing all custom ferroresonant transformers at our facility in Wylie, Texas. Benefits of working with GTC include:
- Optimum Design practices that help us work directly with customers and bring custom designs to life.
- Strong, valuable relationships and connections built upon high-level expertise, emphasized communication, and devoted service.
- Complete engineering services with quick prototype delivery, bar code and part serialization services with data storage, and automated production testing with LabVIEW software.
- Adherence to strict quality standards for processing, personnel, equipment maintenance, and instrument controls.
- Quick turnarounds for delivering prototypes and finished products due to a large in-stock supply of materials and maintaining relationships with multiple vendors.
Contact General Transformer for Your CVT Needs Today
Over 45 years of providing unrivaled design expertise and extensive experience working with OEM manufacturers have established us as a leading customer transformer manufacturer. Contact GTC or request a quote to discuss your custom ferroresonant transformer needs today.
